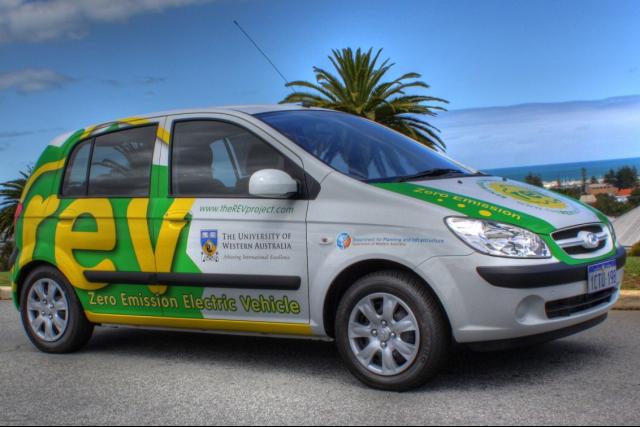

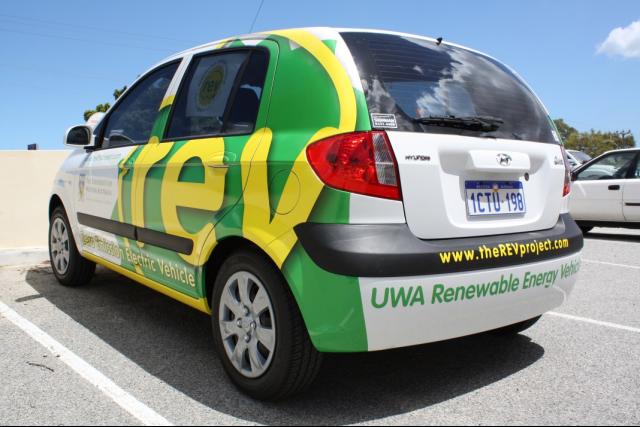

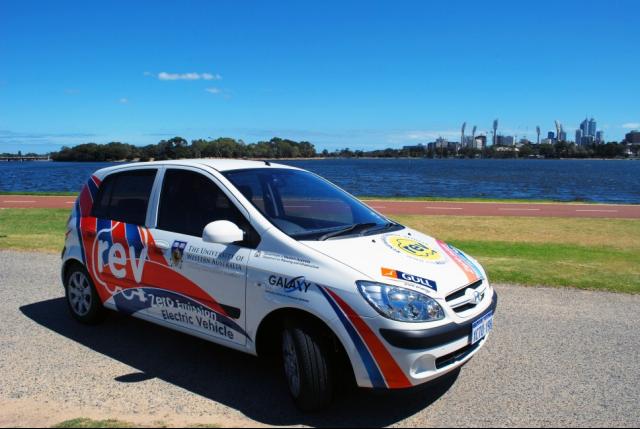

REV Eco. The first REV plug-in electric conversion project was started and completed in 2008. It is a four-wheel, five-seater commuter vehicle, designed for sustained performance over typical comutting distances, based based on a Hyundai Getz 2008 model. The car has undergone alteration install the electric drive motor, accomodate batteries, wiring, and instrumentation, as well as a suspension upgrade to handle the shift in weight distribution.

Project stage 1: March - May 2008: removal of ICE components, installation of electric motor, controller, batteries: drivable car
Project stage 2: Aug. - Oct. 2008: installation of electric power steering, electric brake assist, DC-DC converter, electric heater and air conditioning: road-worthy car (re-registered with WA's DPI).

Specifications:

Base Vehicle: 2008 Hyundai Getz, 5sp Manual, 5-seater Motor: Advanced DC FB1-4001A 9.1 Series Wound DC Drivetrain: 5sp Manual. front wheel drive. Controller: Curtis 1231C-8601, 96-144 Volt 500 Amp Batteries: 45 ThunderSky Lithium Ion Phosphate LFP90AHA 3.2V 90Ah 270A Voltage: 144 V Capacity: 13 kWh Max current, power: 270A, 39kW Charger: Zivan NG3 Battery Charger Charging Time: 6 hours (full charge) Brake Assist: Electric vacuum pump Power Steering: Electric power steering pump Heater: PTC electric heating element AirCon: Electric motor turning AC unit Range: 80 km Top Speed: 125 km/h Seating: 5 Passengers, 5 doors Curb Weight 1160 kg (identical to petrol car) Computer/DAQ: Eyebot MK6 Instrum./Display: Eyebot M6, Color LCD touchscreen Bat. Status: TBS Electronics Battery Fuel Gauge Bat. Management: EV Power Battery Balancing System

Click for larger images.
